Electric Motocycle Motors
High Efficieny Brushless Motor : BRX Series. |
BRX-750
48/60/72v. 3000 RPM. 3.1Nm. Efficieny 88% |
BRX-1600
48/60/72v. 3000 RPM. 5.5Nm. Efficieny 88% |
BRX-1800
48/60/72v. 3000 RPM. 6.6Nm. Efficieny 88% |
BRX-2000
48/60/72v. 3000 RPM. 7.9Nm. Efficieny 88% |
|
|
|
|
|
|
|
|
|
BRX 2500
48v/60v/72v 3000rpm ,10.5 NM
Efficieny 88%
|
BRX3000
48v/60v/72v 3000rpm ,
10.5 NM Efficieny 88% |
|
|
|
 |
|
|
|
|
|
|
2000W-2500W BLDC Motor Swing Arm Assembly for electric scooter, electric motorcycle High efficiency with large output power/torque >>
Get monstrous power from this motor!
Model : HPM5000B -- High Power BLDC Motor
Voltage : 24V/36V/48V/72V
Rated Power : 2000W-7000W
Weight : 11Kgs
Features : Water resistent, Aluminium Casing, Stainless Steel Shaft, Self Cooling Fan
High power brushless motor controllers for electric car, motorcycle, and motorboat applications.
มอเตอร์ไม่มีแปรงถ่าน สำหรับรถไฟฟ้า,รถไฟฟ้า,มอเตไซต์ไฟฟ้า,เรือไฟฟ้า
Model : HPC100B -- High Power Motor Controller
Voltage : 24V/36V/48V/72V
Rated Power : 100A-300A
Weight : 3.3Kgs
Features : Water resistent
ชุดควบคุมมอเตอสำหรับรถไฟฟ้า , มอเตอไซด์ไฟฟ้า , เรือไฟฟ้า
High Capacity LiFePO4 Battery Pack with BMS and Charger
แบตเตอรี่ลิเธียมไอออนฟอสเฟต. มี Battery management System และ ระบบป้องกันกระแสเกิน
Product Model: LFP-3615
Weight: 5.1Kgs
Capacity: 36V/15AH
Dimensions: 150x110x210mm
Max Discharge Current: 45A
Max Continuous Discharge Current: 30A
Charging Cycles: >1000 times
Product Model: LFP-4820
Weight: 10.25Kgs
Capacity: 48V/20AH
Dimensions: 265*153*155mm
Max Discharge Current: 60A
Max Continuous Discharge Current: 40A
Charging Cycles: >1000 times
Encapsulated LiFePO4 Battery modules with BMS for Electric Cars
- Module capacity: 12V100AH
- Max continuous discharge current: 2.5C
- Standard charge current: 0.5C
- Maximum chargeable voltage: 14.6v
- Cut-off discharging voltage: 10.0v
- Charging cycle life: >1000 times
- Module dimensions: 331x171x221mm
- Module weight: 15.7kgs
High Power Brushless Motor Controllers -- Designed for high reliability!

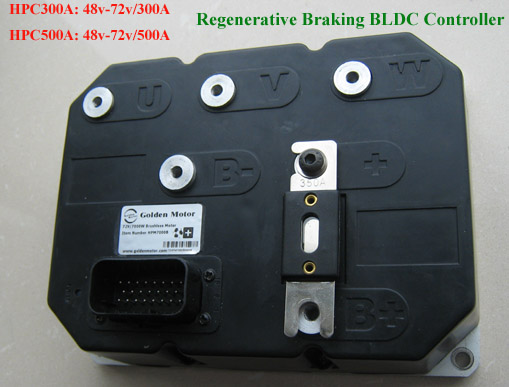

Model: HPC300A/HPC500A -- Brushless Motor Controller
Voltage Range:24V/36V/48V/72V
Rated Power (Max):300A/500A
Weight:3.3Kgs/4.2kgs
Features: Fuse breaker, Regen Braking, Temperature sensoring, Nano-second high current sampling
User Guide(.pdf) 3D Drawing (.jpg)
|
